Architectural Plans - Freestanding Pergola - 10' x 20'
10 x 10 Pergola Design Rendering
10' x 20' Pergola Roof Plan

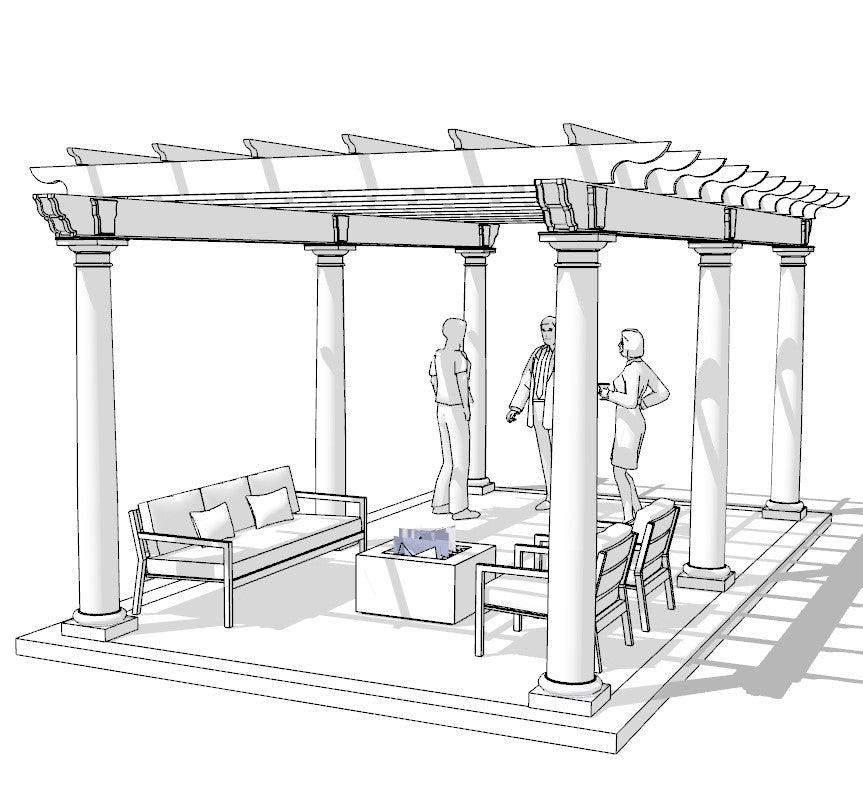

A 10' x 20' Pergola sketch with people & furniture
Wood Pergola Close-up with square Tuscan Columns & details
White Pergola Close-up with classic details
  • Load image into Gallery viewer, Architectural Plans - Freestanding Pergola - 10' x 20'
  • Load image into Gallery viewer, 10 x 10 Pergola Design Rendering
  • Load image into Gallery viewer, 10' x 20' Pergola Roof Plan
  • Load image into Gallery viewer, A 10' x 20' Pergola sketch with people & furniture
  • Load image into Gallery viewer, Wood Pergola Close-up with square Tuscan Columns & details
  • Load image into Gallery viewer, White Pergola Close-up with classic details

Architectural Plans - Freestanding Pergola - 10' x 20'

Vendor
FineHouse Ltd
Regular price
$65.00
Sale price
$65.00
Regular price
Sold out
Unit price
per

This is an architectural set of plans and documents that allow you to build a very high-quality, customizable pergola that will last for many years.

THE VALUE PROPOSITION

The Pergola Plans you have been reading about cost $65 and the reasons for this value are:

  • FineHouse has been designing and building architectural garden structures for more than 20 years, it is all we do.
  • These plans are based on designing and building thousands of structures, primarily for professionals.
  • To have an architect provide these plans would cost over $1500
  • You need a good set of plans like ours for obtaining a building permit.
  • You want to build a long-lasting, beautiful structure that you can be proud of
  • We are a well established business and have a toll free number you can call if you have any issues with your plans (800) 686-3180

The size of the 10' x 20' is the distance between column centers, the size of the upper elements is 13' x 23' because all of the upper elements cantilever 18" beyond the column centers.

You can choose what type of columns you are going to use, what end carvings you are going to use, and how you're going to paint or stain the structure, to get just the look you're after!

Included with the design are the following; Foundation plan, front and side elevations, alternate elevations, roof plan, lintel plan, cross-sections, connection details, shop drawings, full-scale templates for a variety of carved ends, a complete material list, and much more. You will receive more than 20 pages of drawings and instructions.

This set of plans will also allow you to apply for a building permit with all of the drawings required by most jurisdictions but does not include an engineer or architect's seal, this must be obtained locally if required.

These plans are provided as a PDF in 11x17 format with a license to build one structure.

Below is just a sample of the pages you will receive.
